product manual:
This machine mainly uses the high-speed shot blast thrown by a high-efficiency and powerful shot blaster to throw the surface of the rotating workpiece in the chamber to remove other sticky sand, rust layer, welding slag, scale and other debris, so as to obtain a fine Smooth surface. It improves the adhesion of the paint film to the surface of the steel, improves the fatigue resistance and corrosion resistance of the steel, improves the inherent quality of the steel, and extends its service life.

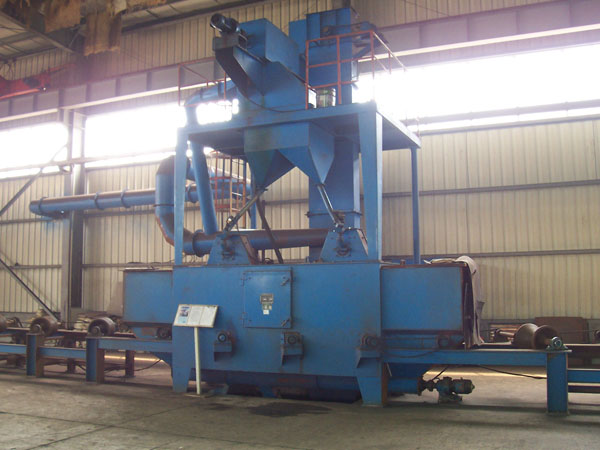

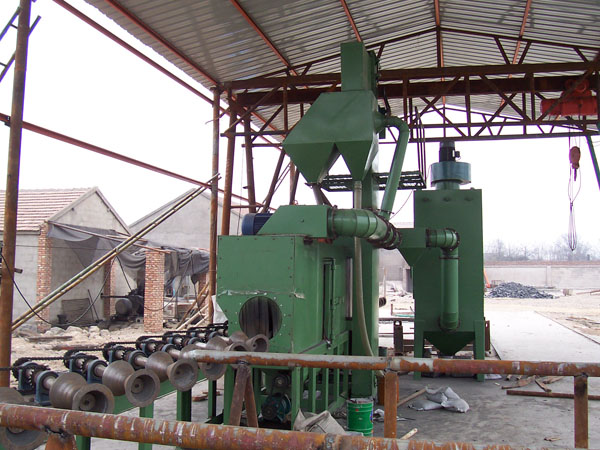

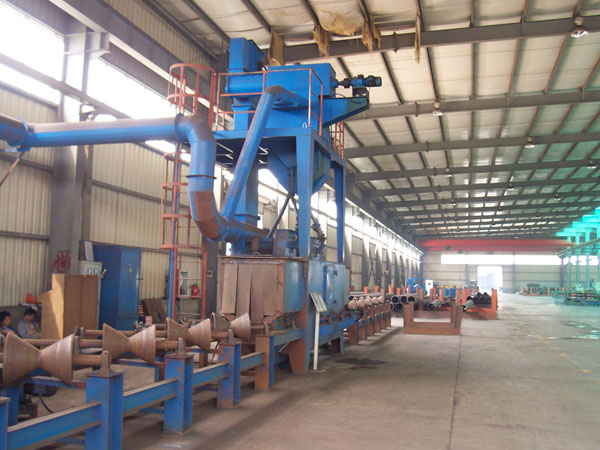

This series of products are suitable for continuous blasting of the outer surface of a batch of steel pipes before welding or painting, to thoroughly remove rust, remove scale and other dirt, and are experts in pipeline cleaning. Its superior cleaning performance has made the labor-intensive sandblasting and wire brushing methods of the past obsolete. At the same time, the steel pipe shot blasting machine can minimize production costs and greatly increase output.
Technical Parameters:
清理尺寸 | ?300x5000mm | 拋丸器功率 | 11kwx2 |
行走速度 | 1-5m/min(可調) | 提升機功率 | 3kw |
輥道長度 | 5000mm | 提升量 | 30/h |
輥距 | 400mm | 縱向螺旋功率 | 3kw |
承載重量 | 30kg/m | 輸送量 | 30t/h |
處理風量 | 9800m3/h | 分離量 | 30t/h |
除塵風機功率 | 5.5kw | 總功率 | 37kw |
減速機功率 | 2.2kw | 外形尺寸 | 1.5mx4.6mx5m |
型號 | 清理工件尺寸 | 加工管數 | 拋丸器數量 | 拋丸器型號 |
GQ50 | ?15-50x12000 | 4 | 2 | Q034Ⅱ |
GQ200 | ?50-200x12000 | 3 | 2 | Q034Ⅱ |
GQ1000 | ?200-1000x12000 | 1 | 4 | Q034Ⅱ |
GQ2000 | ?1000-2000x12000 | 1 | 8 | Q034 |
GQ3000 | ?2000-3000x12000 | 1 | 10 | Q034 |
